Using the tools
Add and export drawing markup
Record comments with five tools and include the marks in your export.
Choose a suitable mark
Freehand, arrows, rectangles, ellipses and clouds highlight areas of interest. Seven colors and adjustable line width are available. Markup records comments rather than editing design objects.
Mark, check and export

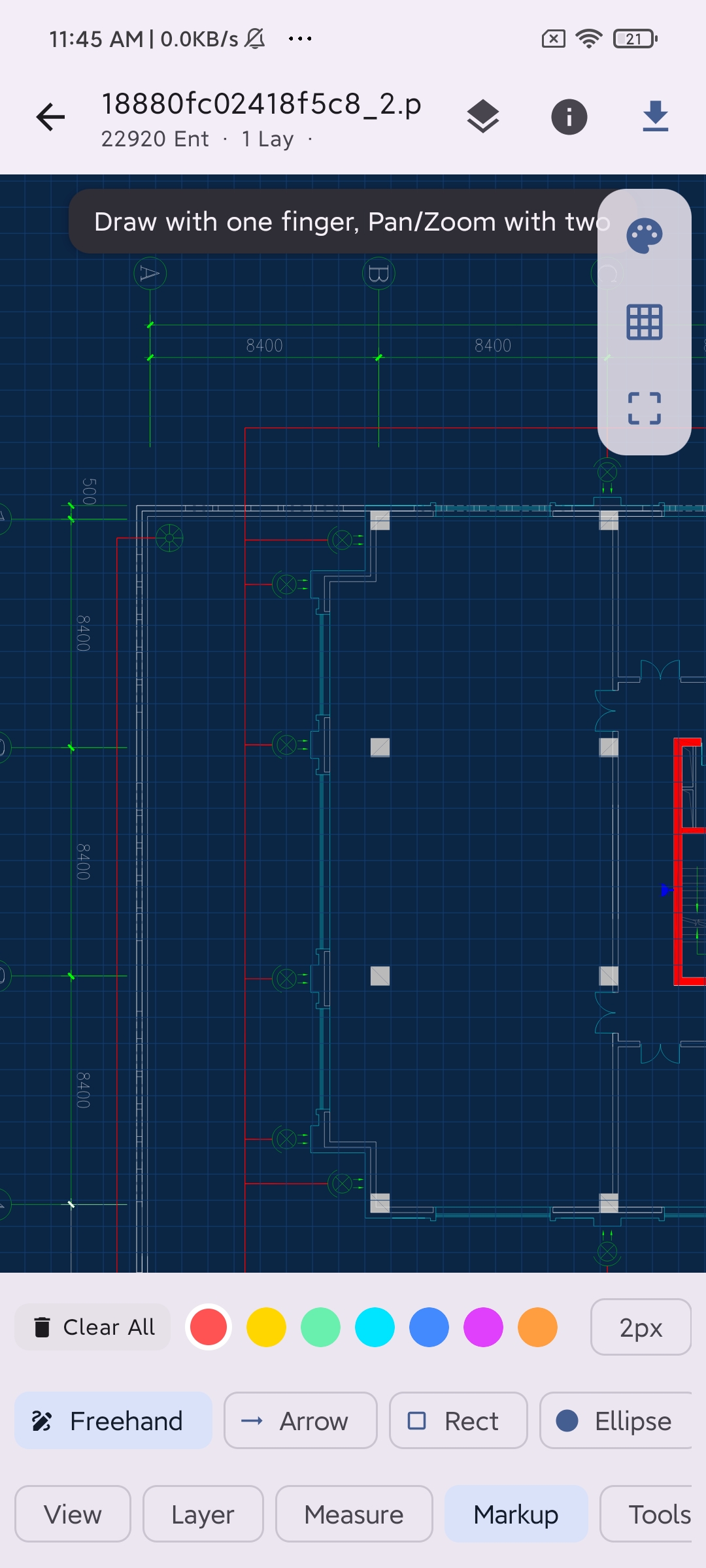

Choose a tool, color and line width, then mark the drawing. Use undo, the markup list or clear to make adjustments. When exporting PDF, PNG or DXF, choose whether to include markup and save the file.
Confirm formal design changes separately
Use the appropriate design process to confirm changes and update the CAD source file. Markup supports communication and does not provide full CAD source editing.
Screens and available features depend on the version installed.
